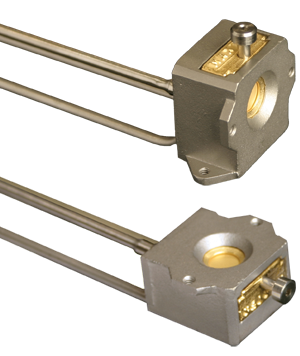

抽屉式单探头
炫酷抽屉单传感器允许晶体从侧面安装到传感器中，为没有足够的空间从前面安装晶体的系统提供了便利。炫酷抽屉单传感器采用炫酷抽屉晶体支架，该晶体支架通过水冷式外壳进行热屏蔽，可确保卓越的晶体性能。
功能
- 1.无内部电缆
- 2.炫酷抽屉晶体支架
- 3.易于安装
- 4.在配有焊接式 CF40 法兰时可烘烤
- 5.随附：CF40 馈入件和 2.54 cm (1") 螺栓馈入件
- 6.在配有压缩接头时可调长度
- 7.在配有压缩接头时无需铜焊
- 8.焊接为客户指定长度的传感器/馈入件组合

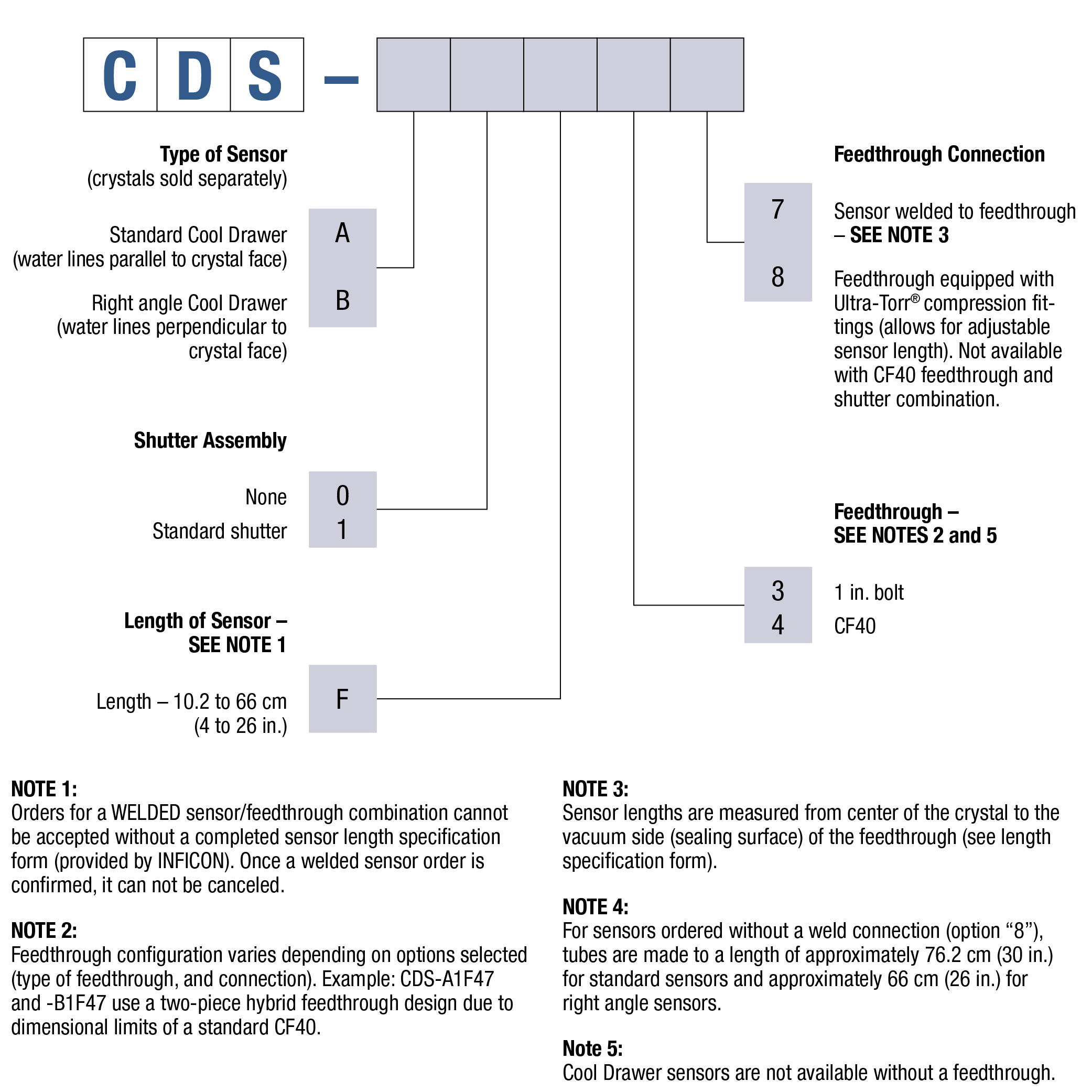

零件号
规格
| 类型 | Cool Drawer Single Sensor | |
|---|---|---|
| 表面加工 | Stainless steel, gold plated cool drawer | |
| 冷却水 | Minimum water flow of 150 to 200 cm³/min using 1/8 in. O.D. tube, 30°C max. (Do not allow to freeze) | |
| 电气连接 | One standard female BNC on atmosphere side | |
| 晶体 | Industry standard 0.550 in. diameter | |
| 空气源 | Shuttered sensors require 55 to 60 psi regulated | |
| 1 in. 螺栓和压缩接头端接： | ||
| 材料 | 304 stainless steel, Teflon®, ceramic, beryllium nickel, VITON® | |
| 温度 | Operational environment to 300° C with water cooling or 165° C without | |
| 安装 | 1.015 in. ±0.010 in. diameter aperture | |
| CF 40 焊接式端接： | ||
| 材料 | 304 stainless steel, Teflon, ceramic, beryllium nickel | |
| 温度 | Operational environment to 450° C with water cooling or 200° C without | |
| 安装 | Mates with 2 ¾ in. ConFlat type flanges with 1.375 in. I.D. min. | |
-
型号Cool Drawer Single Sensor
-
常用货号（P/N）DL-AE038
-
品牌inficon
-
产地美国
